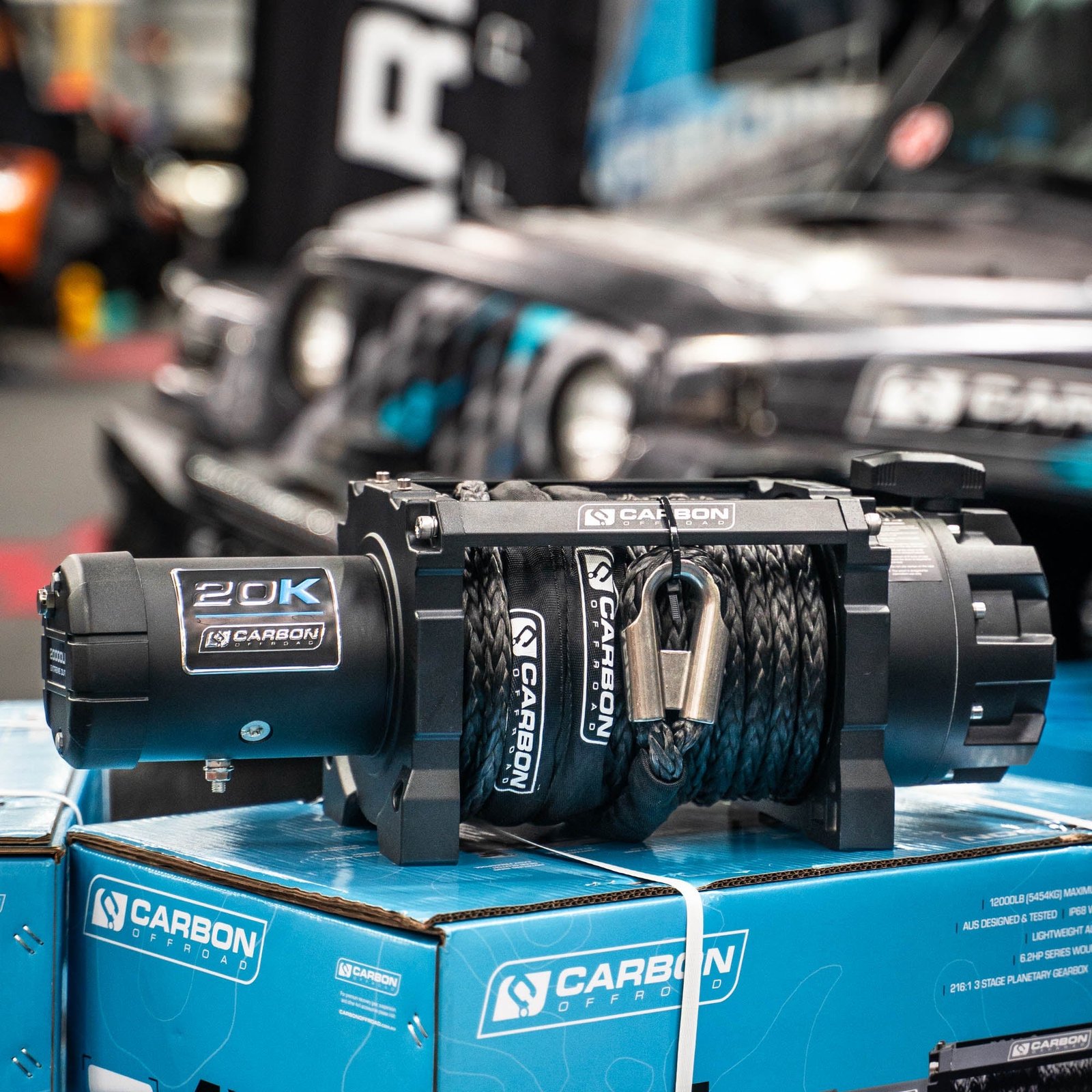

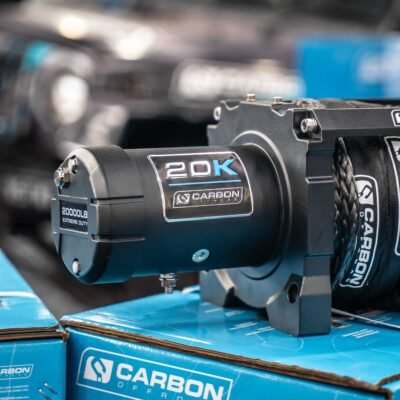

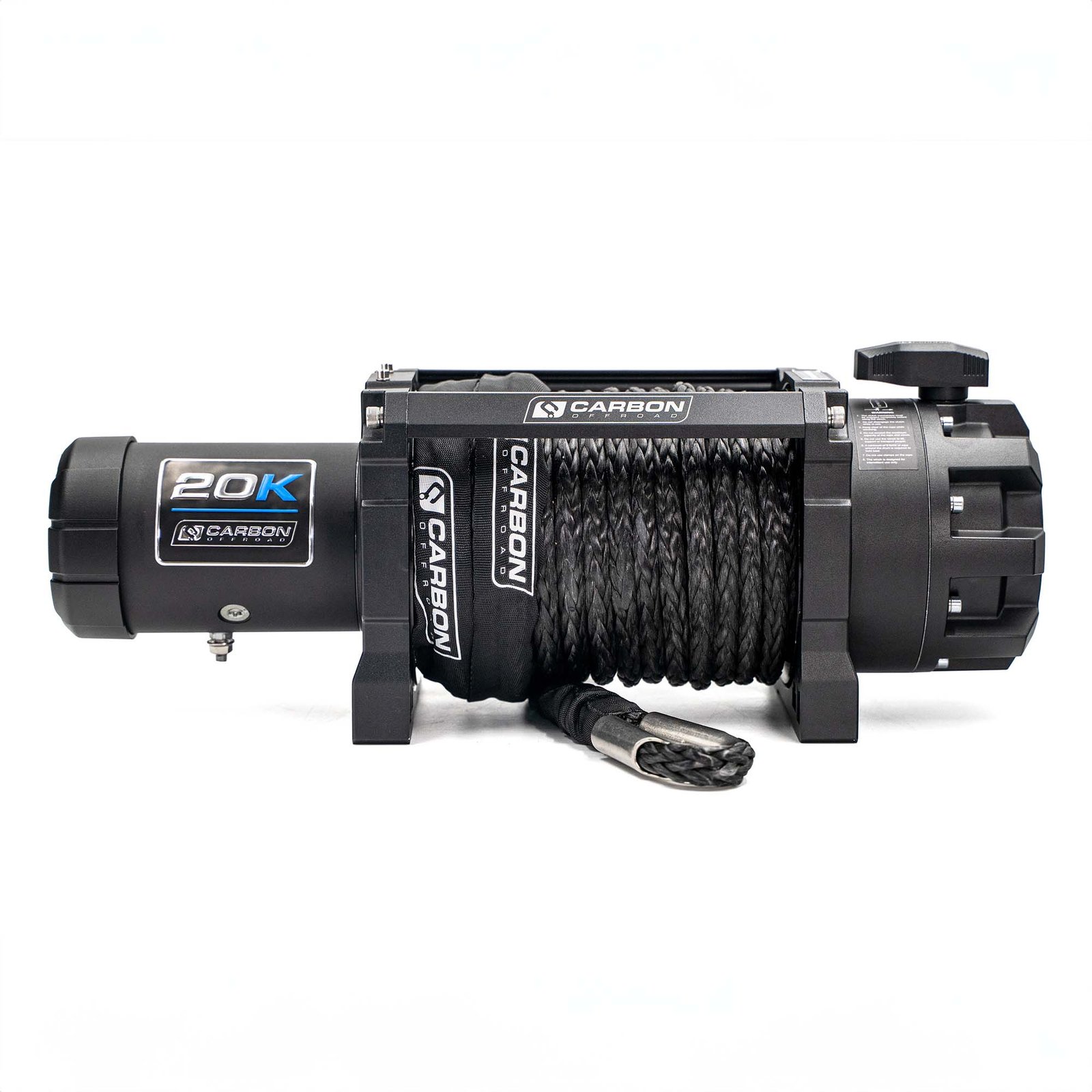

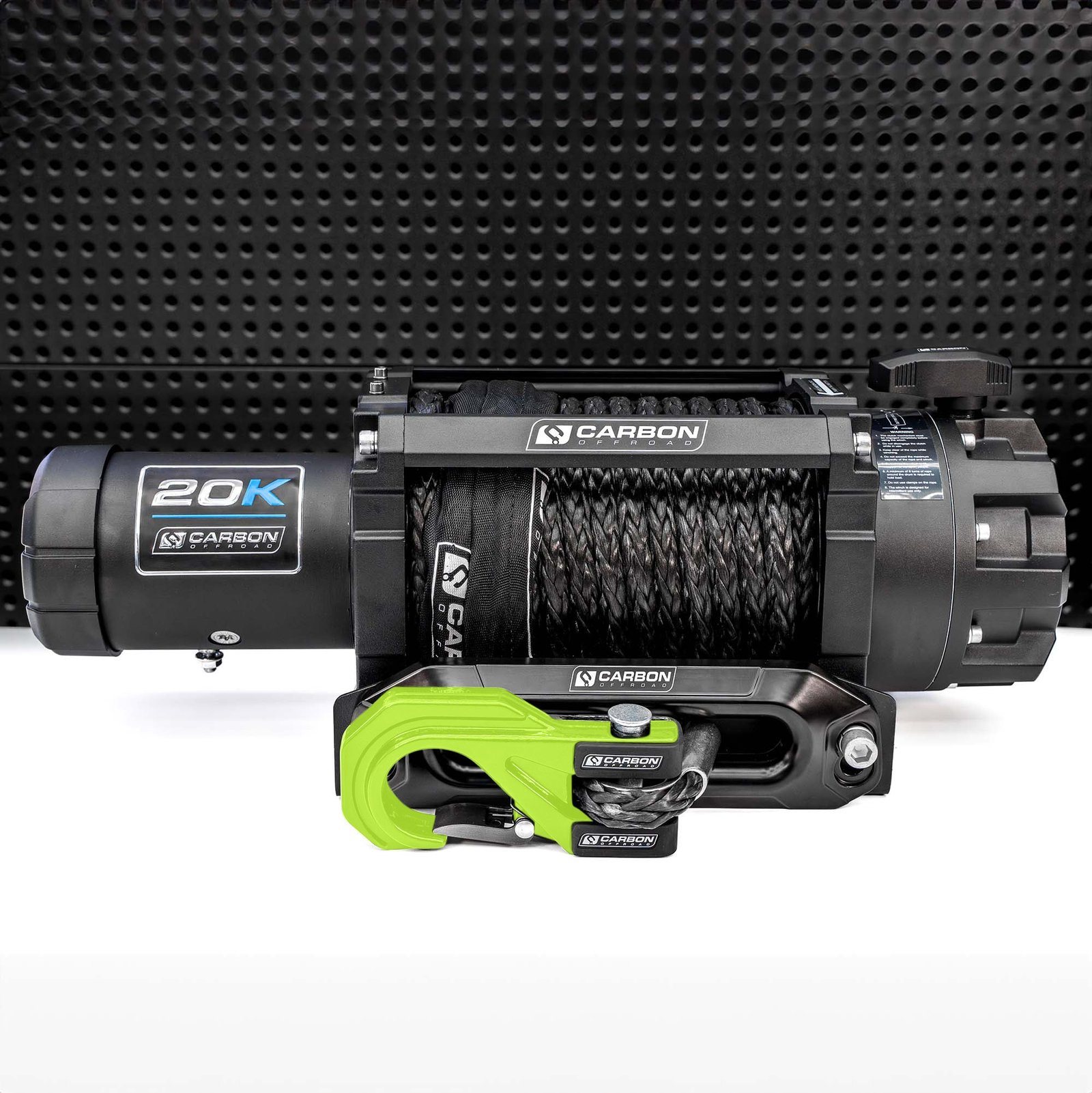

Carbon Scout Pro 20000lb Extreme Duty Truck Winch
Estimated delivery: 14 October – 24 October
Australia & New Zealand delivery
30-day returns
12-month warranty
Extreme-duty 20,000lb recovery power for large 4x4s, trucks and demanding recovery work. The Carbon Scout Pro 20K combines a 7HP series-wound motor, 354:1 three-stage planetary gearing and IP68-rated electronics in a high-capacity recovery package.
Designed for heavy trailers, large commercial vehicles and extreme terrain where sustained pulling power matters most.
- 20,000lb (9,072kg) rated line pull for serious heavy-duty recovery.
- 7HP series-wound motor with 354:1 gearing for controlled, high-load pulling.
- Complete recovery kit with 25m synthetic rope, MegaPro CNC billet fairlead, wired and wireless remotes and mounting hardware.
Overview

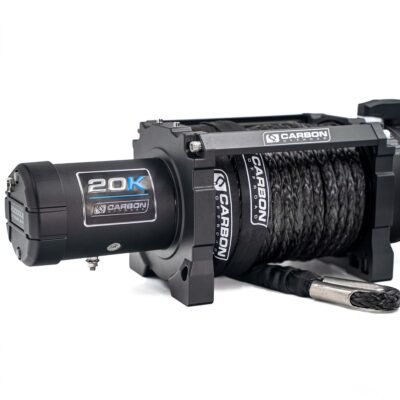

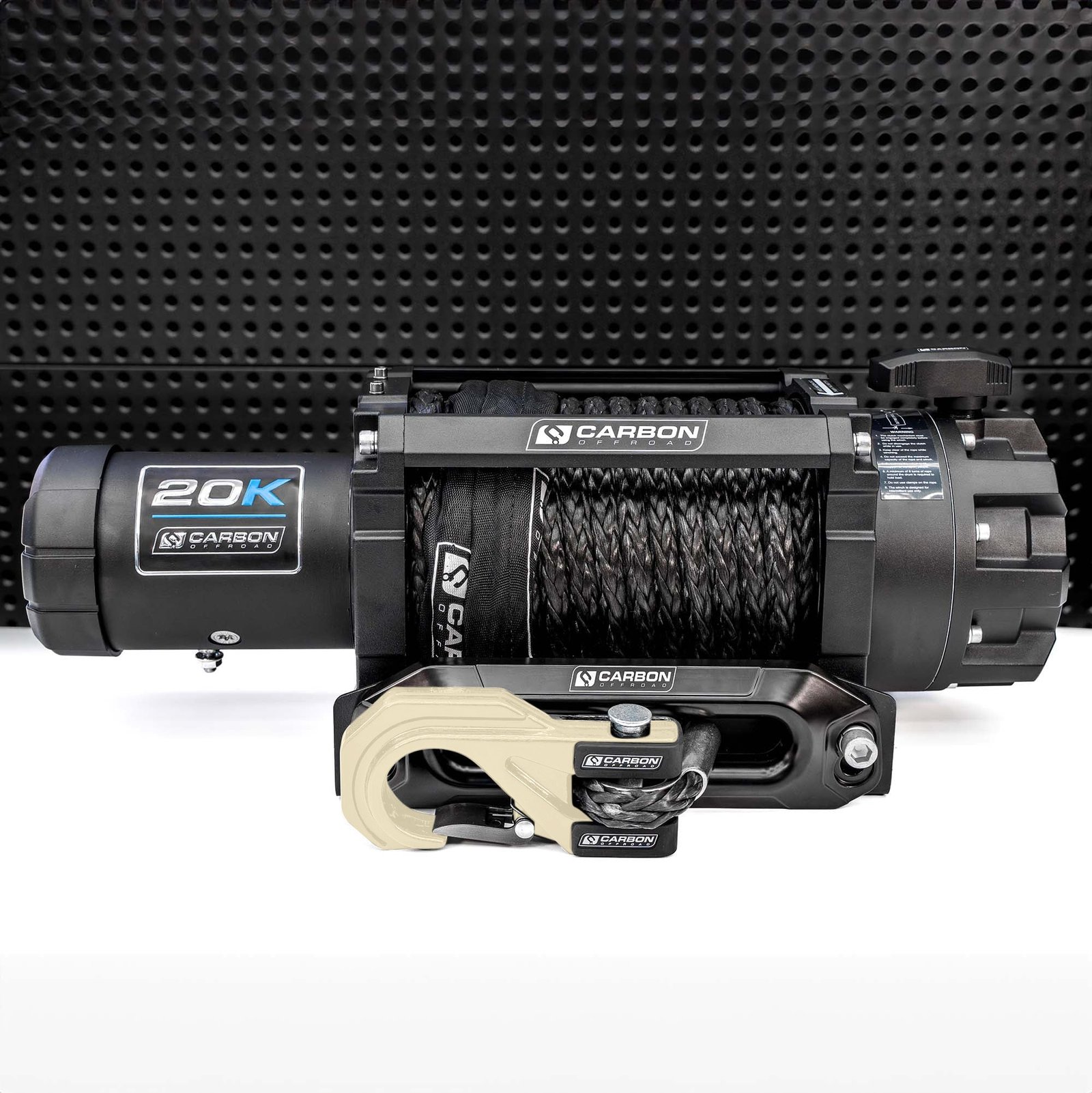

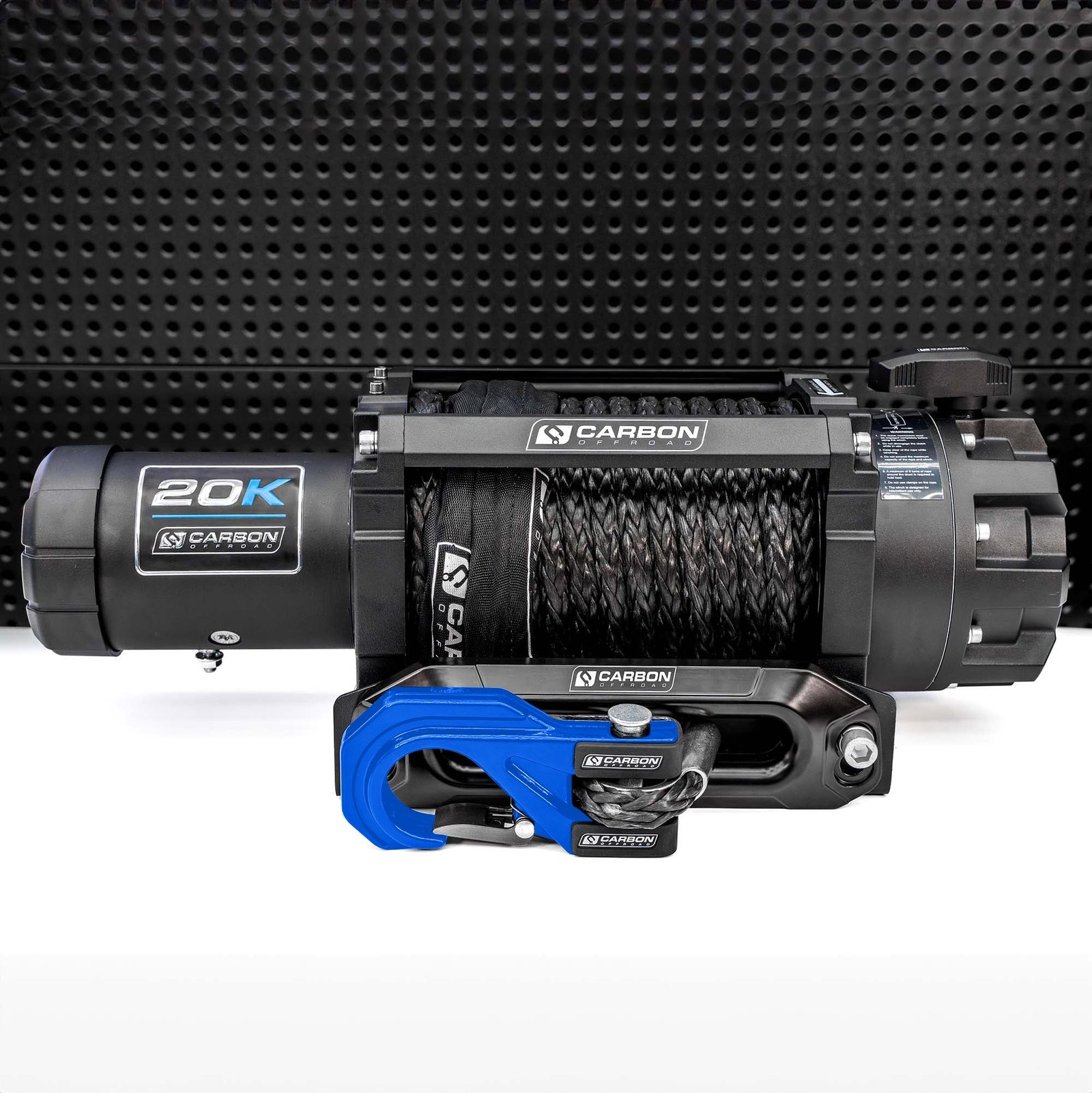

The Carbon Offroad Scout Pro 20K is built for applications where smaller winches simply do not have enough capacity. Its 9,072kg (20,000lb) rated single-line pull makes it suited to recovering large vehicles, hauling heavy trailers and tackling extreme terrain.
An automatic proportional brake is integrated into the motor frame to reduce heat buildup on the drum, while the rotating ring-gear clutch allows straightforward switching between free-spool and engaged modes. The winch is also compatible with the Carbon Offroad Air Freespool Clutch Upgrade.
Key Features
- Colossal pulling capacity: 20,000lb (9,072kg) single-line pull.
- Proportional braking: Automatic brake system applies force in proportion to load and helps reduce drum heat.
- MegaPro premium hardware: Multi-position CNC billet Type 3 hard-anodised fairlead protects the high-capacity synthetic rope.

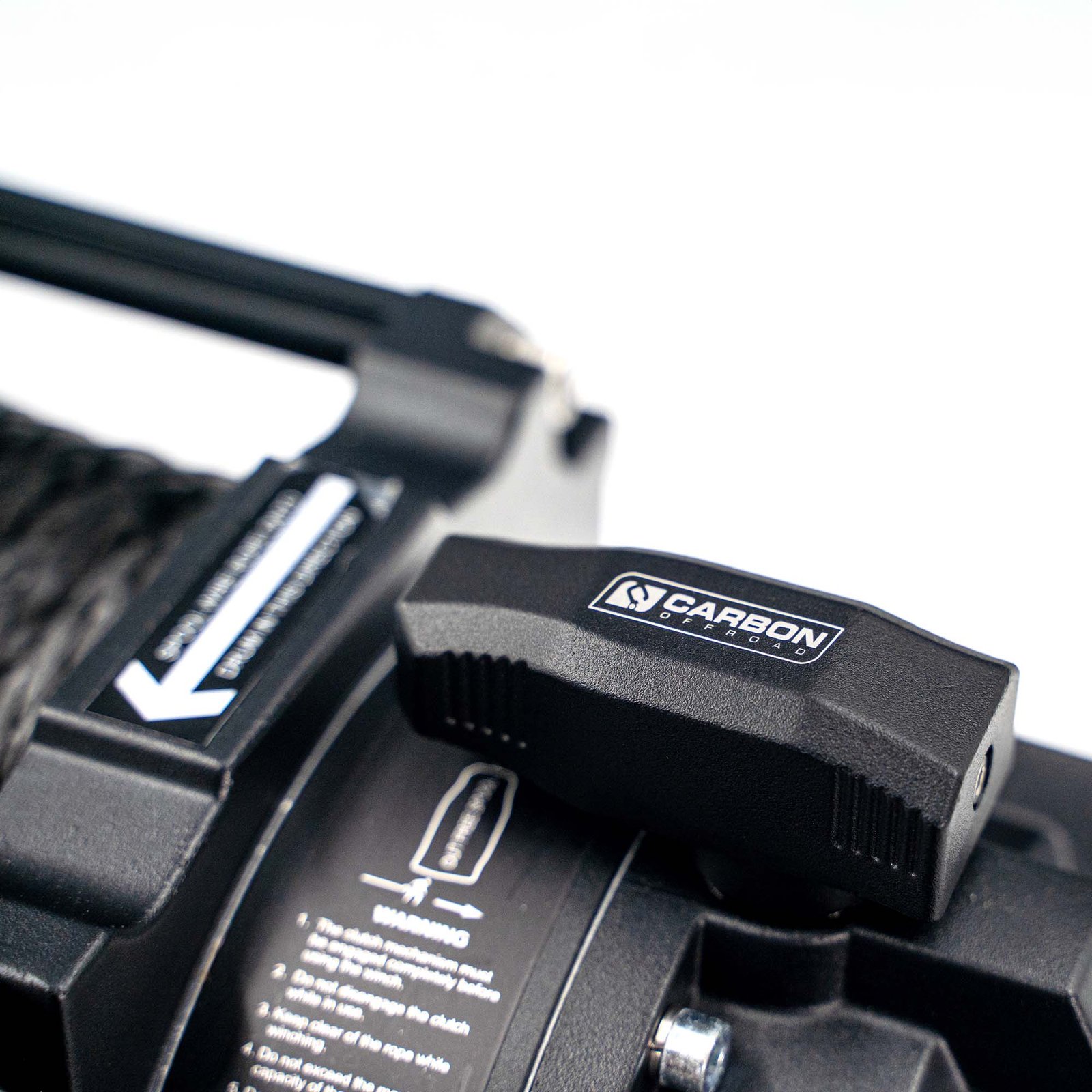

- Rotating ring-gear clutch: Easy switching between free-spool and engaged modes.
- Weatherproof electronics: 600A sealed solenoid with IP68 ingress protection.
- Dual control: Wired and wireless remote controls included.

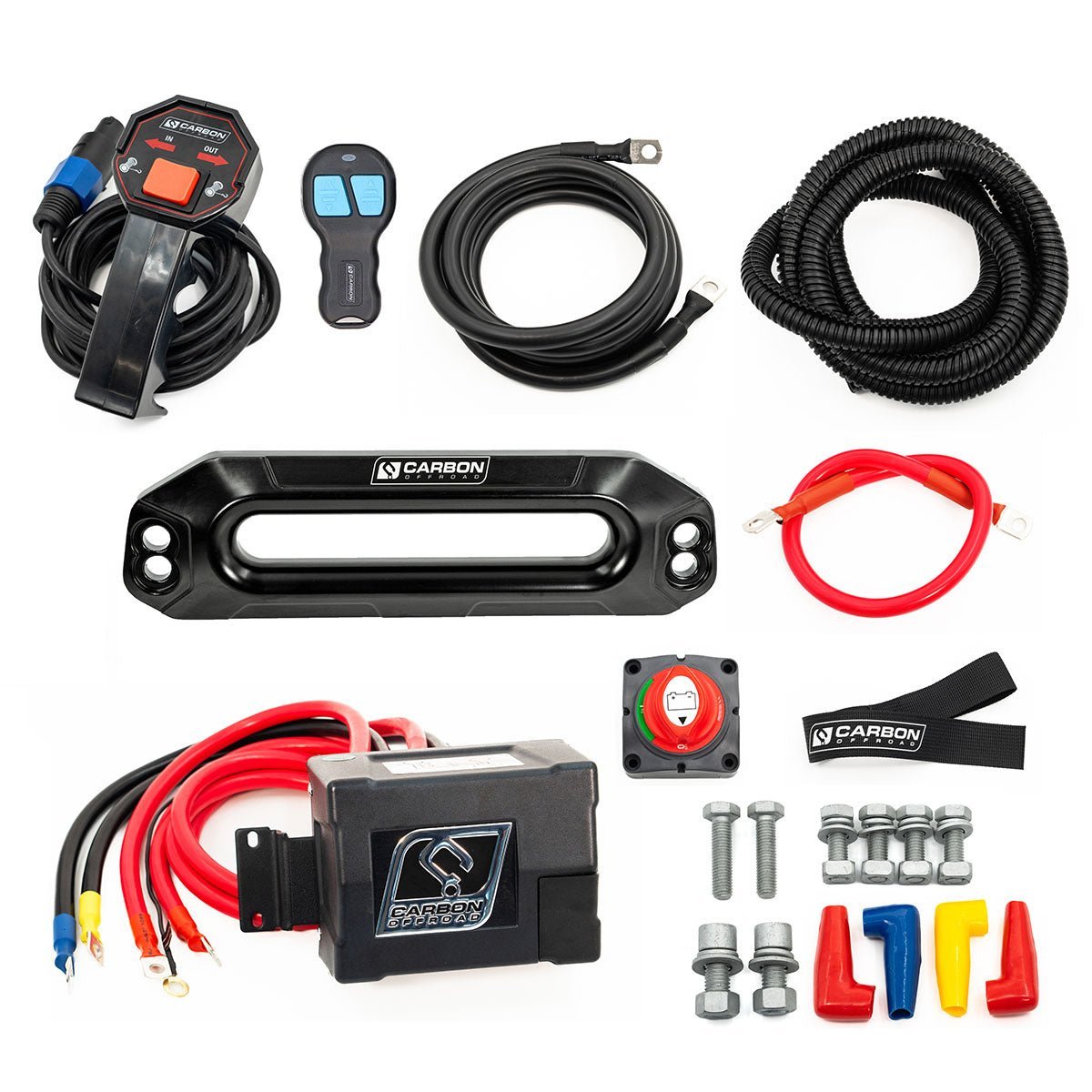

What’s Included
- 1 x Carbon Offroad Scout Pro 20K Truck Winch

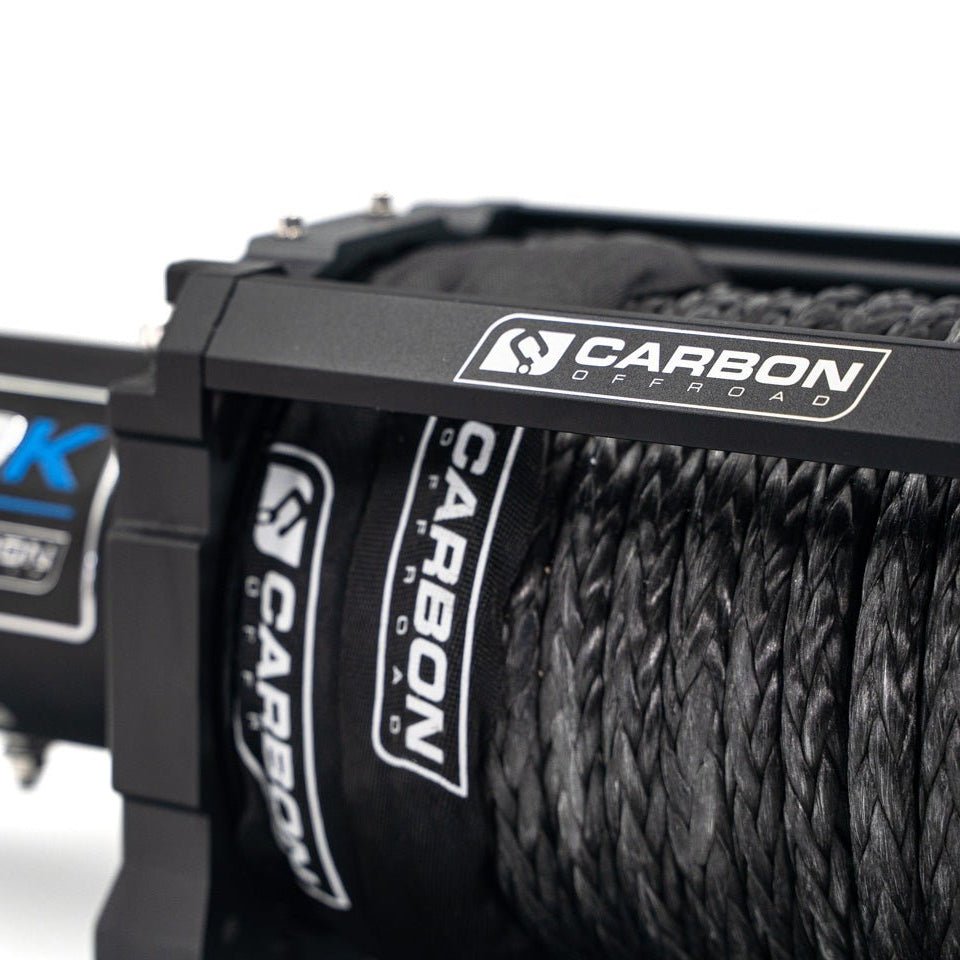

- 1 x Synthetic Rope — 25m x 13mm
- 1 x MegaPro CNC Billet Fairlead
- 1 x 600A Sealed Solenoid & Control Box
- 1 x Wired Remote Control — 3.6m lead
- 1 x Wireless Remote Control
- 1 x Mounting Hardware Kit
Warranty & Support
- Lifetime mechanical warranty
- 5-year electrical warranty
- 5-year water ingress protection warranty
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | CW-XD20 |
| Rated Line Pull | 9,072kg (20,000lb) single-line |

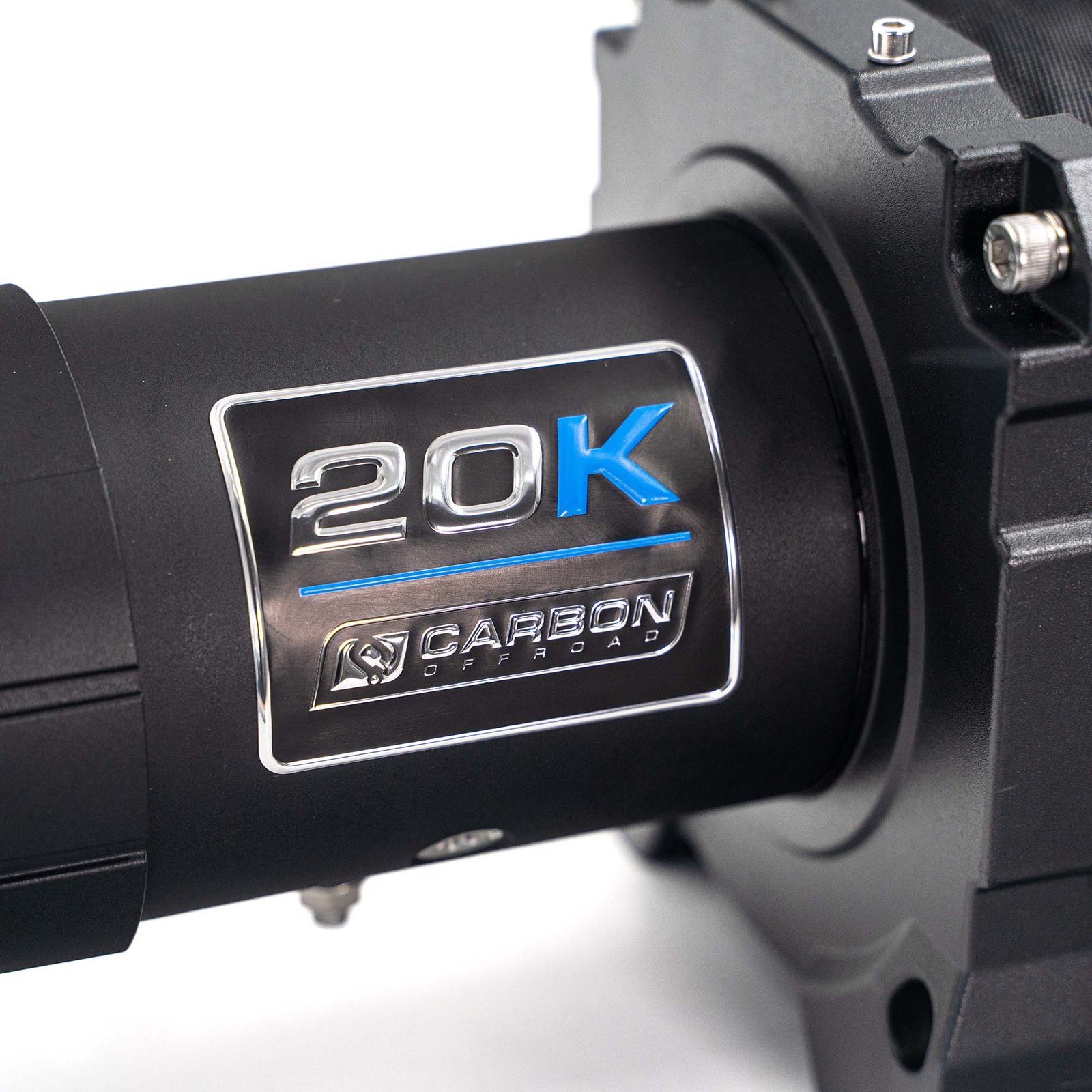

| Motor | 12V DC 7HP series wound |
| Gear Ratio | 354:1, 3-stage planetary |
| Synthetic Rope | 25m x 13mm (82ft x 0.5in) |
| Drum Dimensions | 88mm x 224mm (3.5in x 8.8in) |
| Mounting Bolt Pattern | 254mm x 114.3mm (10in x 4.5in) |
| Winch Dimensions | 579 x 192 x 224mm (L x W x H) |
| Recommended Battery | 650 CCA minimum |
| Installed Weight | 31.7kg |
| Total Kit Weight | 37.2kg |
12V Performance
| Line Pull lbs (kg) | Line Speed ft/min (m/min) | Motor Current | Rated Line Pull Position lbs (kg) |
|---|---|---|---|
| 0 | 26.2 (8.0) | 70A | 1 / 20,000 (9,072) |
| 4,000 (1,814) | 10.8 (3.3) | 145A | 2 / 16,140 (7,321) |
| 8,000 (3,629) | 8.5 (2.6) | 230A | 3 / 13,520 (6,133) |
| 12,000 (5,443) | 6.2 (1.9) | 310A | 4 / 11,660 (5,289) |
| 16,000 (7,257) | 4.6 (1.4) | 390A | — |
| 20,000 (9,072) | 3.3 (1.0) | 460A | — |
